The universal pressure pipe system

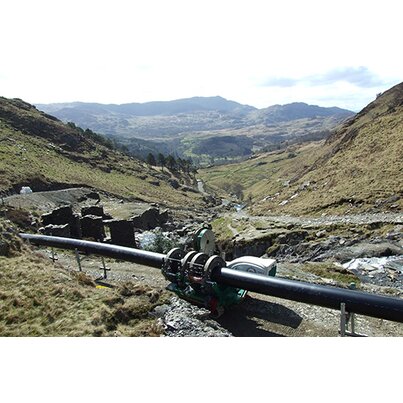

The GPS PE Black range is the universal solution for potable and raw water in above ground, hydropower, industrial and other wastewater applications, comprising a range of high performance polyethylene (PE) pipes, complete with a wide variety of fully compatible and approved fittings options.
GPS PE Black pipes are flexible, lightweight and corrosion-free, and can be used to create a robust, fully-welded system with butt-fusion or electrofusion jointing for maximum joint integrity and an extensive service life. The GPS PE Black system offers excellent lifetime cost savings compared to traditional materials, and with BS EN 12201 approval across the range, it provides a reliable solution for pumped or gravity pipeline systems.
The range includes options specifically designed for rainwater harvesting, grey water and irrigation systems, and for above ground applications where UV light can affect the performance of the system.
Along with Philmac compression fittings, Frialen electrofusion fittings and a wide variety of spigot fittings and fabrications, we provide a unique and comprehensive system solution for potable water, non-potable water, hydropower and industrial applications.
System overview
- Flexible and lightweight for ease of installation
- Corrosion resistant
- Minimum maintenance requirements
- Compatible fittings range
- Excellent lifetime cost savings vs traditional materials
- BS EN 12201 approval
- Sizes 20mm to 1200mm

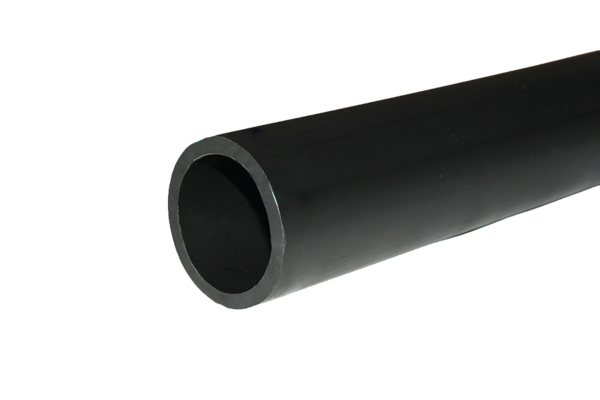

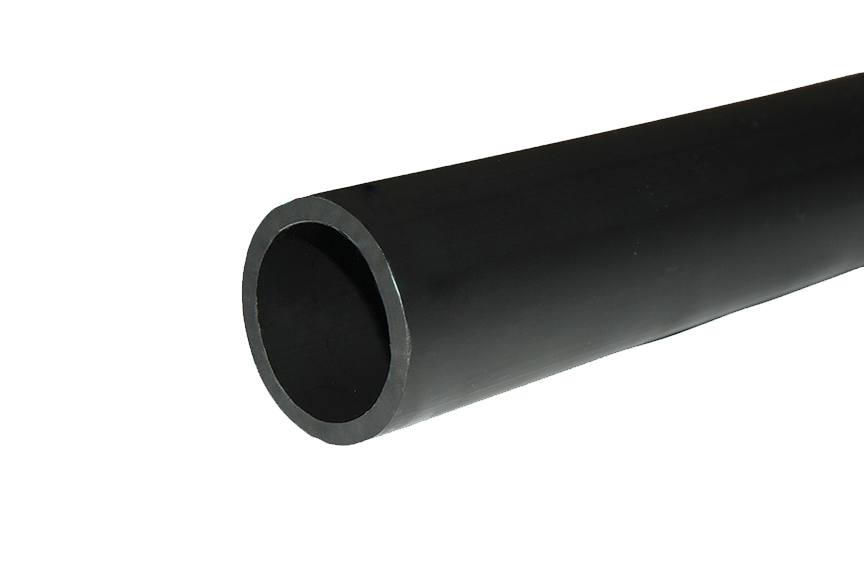

GPS PE Black pipe
GPS PE Black pipe is flexible and lightweight, can be installed using trenchless methods such as directional drilling as well as traditional open-cut techniques. The high quality polymer allows for a fully welded, pressurised pipeline system with a wide range of sizes and pressure ratings.
- Flexible and lightweight for ease of installation
- Corrosion resistant
- Minimum maintenance requirements
- Suitable for trenchless installation methods

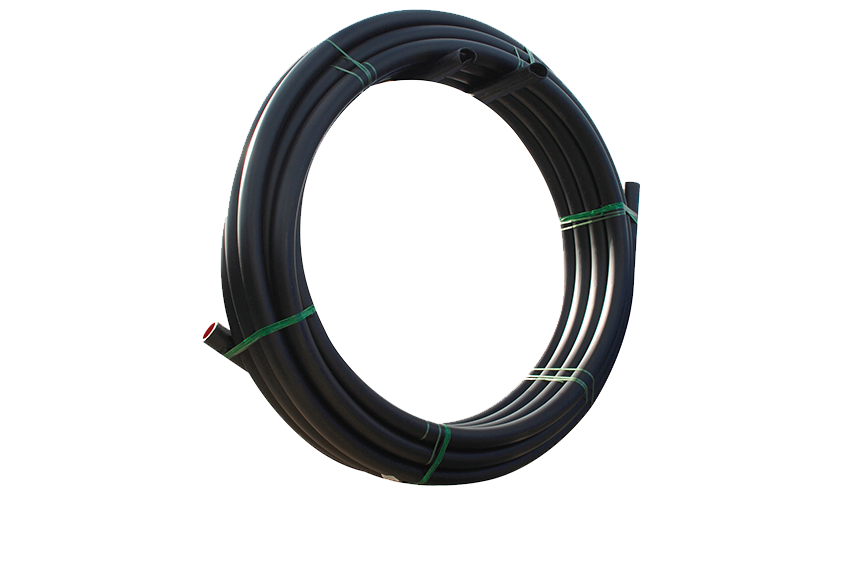

- Available in straight lengths and coils
- Up to 16 bar pressure rating
- BS EN 12201 approved
- Sizes 20mm to 1200mm
- Bespoke diameters, lengths and pressure ratings available to order

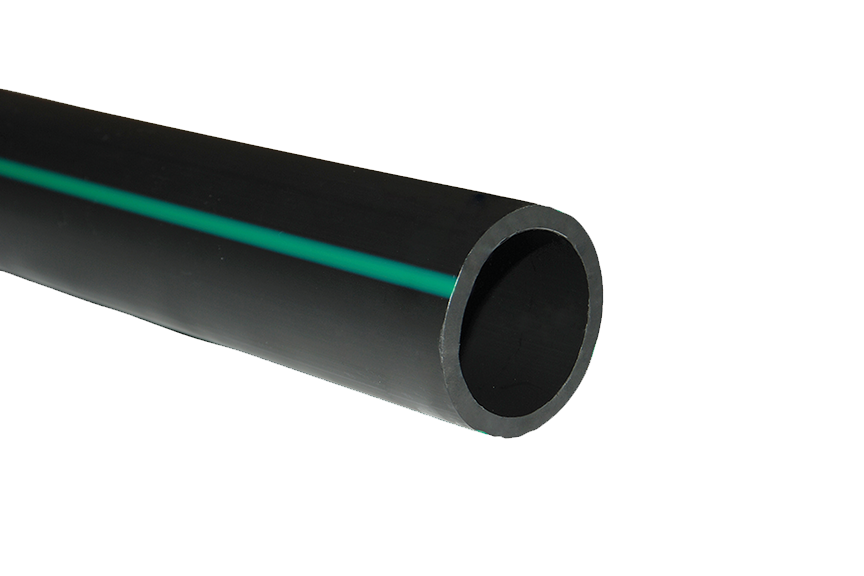

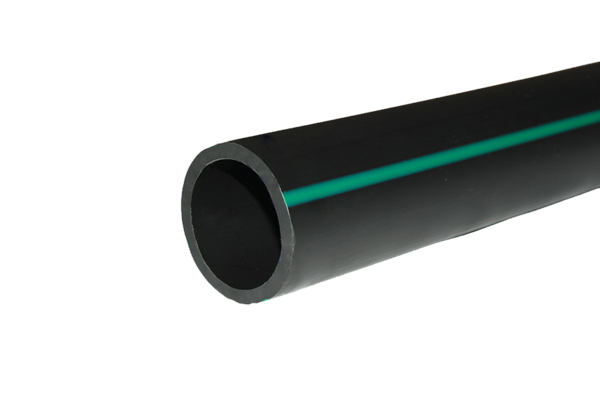

Enviro-Line
Designed specifically for rainwater harvesting, grey water and irrigation systems, the high performance Enviro-Line also provides all the benefits of PE, combining maximum installation and performance efficiencies with optimum cost.
- Flexible and lightweight for ease of installation
- Corrosion resistant
- Green stripe for easy identification in water recycling applications
- Minimum maintenance requirements
- Available in straight lengths and coils
- Up to 16 bar pressure rating
- BS EN 12201 approved
- Sizes 20mm to 90mm

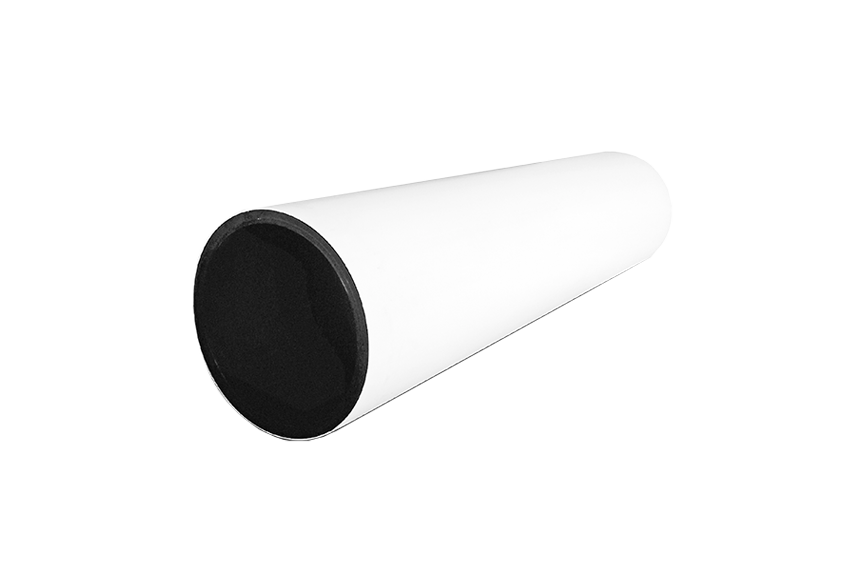

GPS PE White pipe
GPS PE White Pipe is specifically designed for above ground transportation of potable water or non-potable water and slurry in mains supply, hydropower, mining, and cooling system applications. The high quality polymer has excellent resistance to the UV degradation caused by exposure to sunlight, and provides a reduction of the thermal expansion and stress caused by the significant increase in temperature when exposed to sunlight.
- All the installation and performance benefits of other PE pipes
- Reduced thermal expansion and stress in pipe
- Excellent lifetime cost savings vs traditional materials
- Available in straight lengths and coils
- Up to 16 bar pressure rating
- Meeting the performance requirement of BS EN 12201
- WRAS and DWI approval
- Sizes 180mm to 630mm

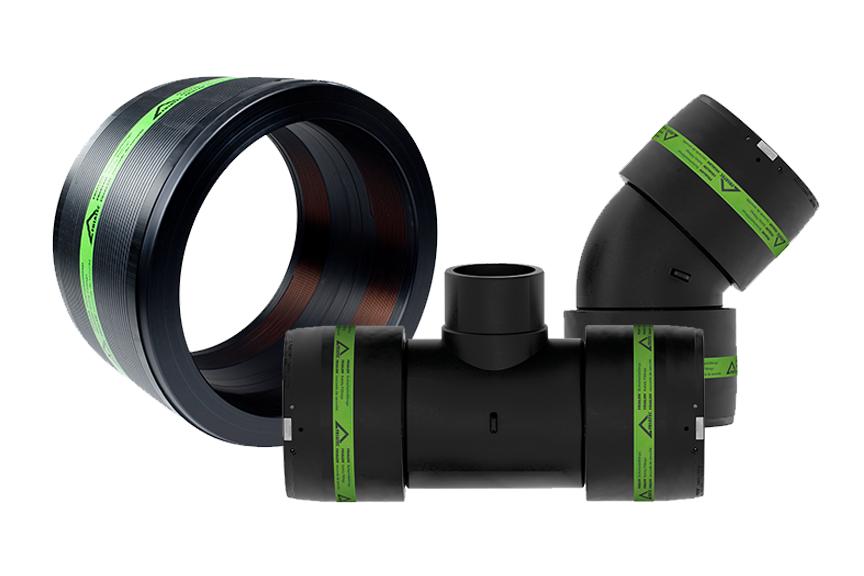

Frialen electrofusion fittings
The Frialen range of electrofusion fittings has been engineered to provide the highest quality joints for polyethylene pipes, creating a fully homogenous system with GPS PE Black pipe that installers and operators can depend on. Their unique design incorporates exposed heating coils to provide consistent heat transfer during fusion and to achieve maximum bonding between the materials.
- Exposed heating coils for consistent heat transfer
- Longer fusion zones for greater reliability
- Larger fitting insertion depth
- Reduced pipe misalignment
- Range conforms to wide range of global standards
-
Unrivalled range of specialist products to solve customers needs
Find out more about our Frialen electrofusion fittings

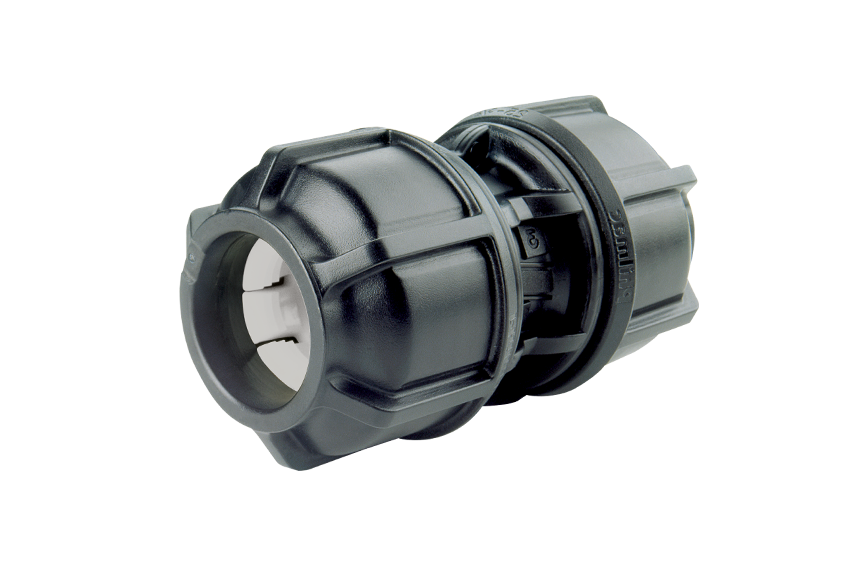

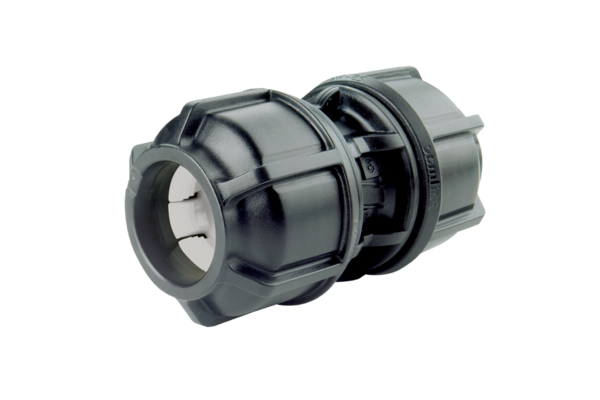

Philmac compression fittings
The comprehensive range of Philmac fittings and valves is designed for pressurised pipe systems and is suitable for working pressures up to 16 bar. With options including the 3G Metric Imperial fittings and the UTC Universal Transition Coupling, the Philmac range provides flexibility and fast, easy installation, and is WRAS-approved for drinking water applications.
- Long-lasting and corrosion resistant
- Fast and easy installation
- Lead free
- Lightweight and high-performance
- WRAS approved
- Sizes 20mm to 110mm
Find out more about our Philmac compression fittings

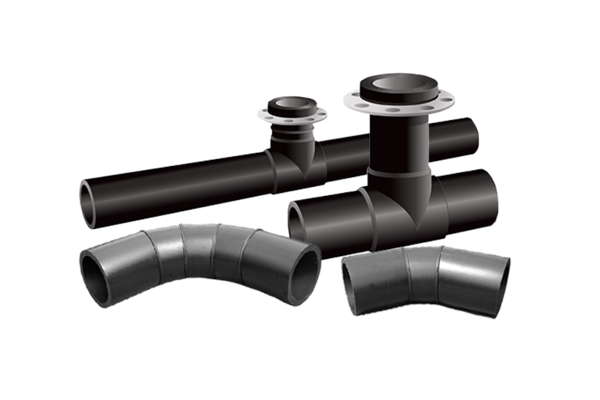

Spigots and fabricated fittings
GPS PE Black spigot fittings are supplied complete with pupped outlets ready for electrofusion or butt-fusion, eliminating the need for additional pupping at installation. The range comprises a wide variety of shapes which includes mitred bends, equal and reduced tees, reducers and stub flange assemblies. Together with our technical design service, we provide solutions for both innovative new pipeline design and existing complicated pipe networks, offering a superior quality experience to specifiers, designers and installers without the need to compromise on operating pressure or retention of existing complicated infrastructure.
- Suitable for electrofusion and butt-fusion techniques
- Excellent performance without reduction of operating pressure
- Compatible with GPS PE Blue pipes and fittings
- Bespoke options available to be tailored to individual site requirements
- Available in a wide range of shapes and pressure ratings
- Sizes 63mm to 1200mm
Find out more about our bespoke fabrications service
